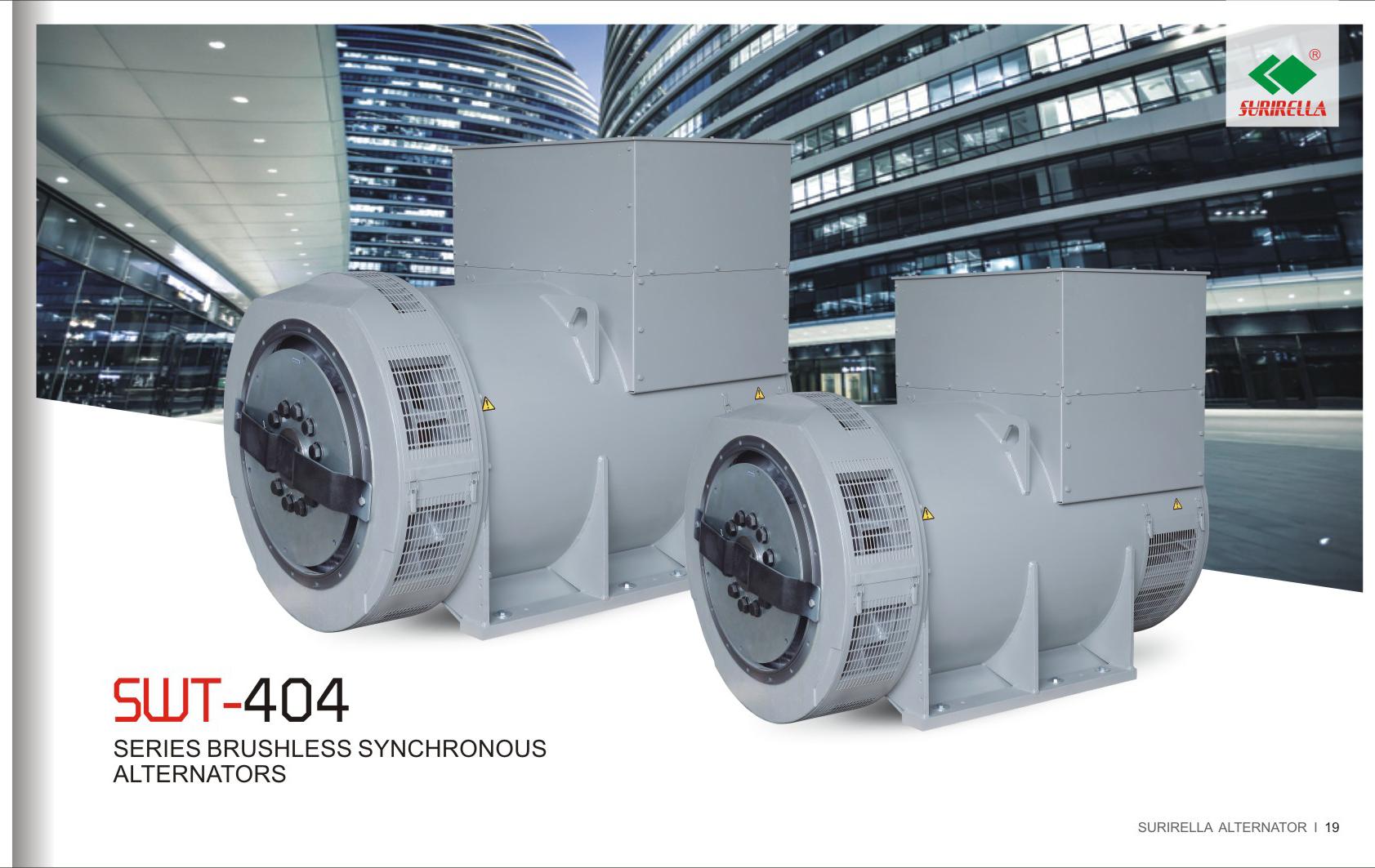

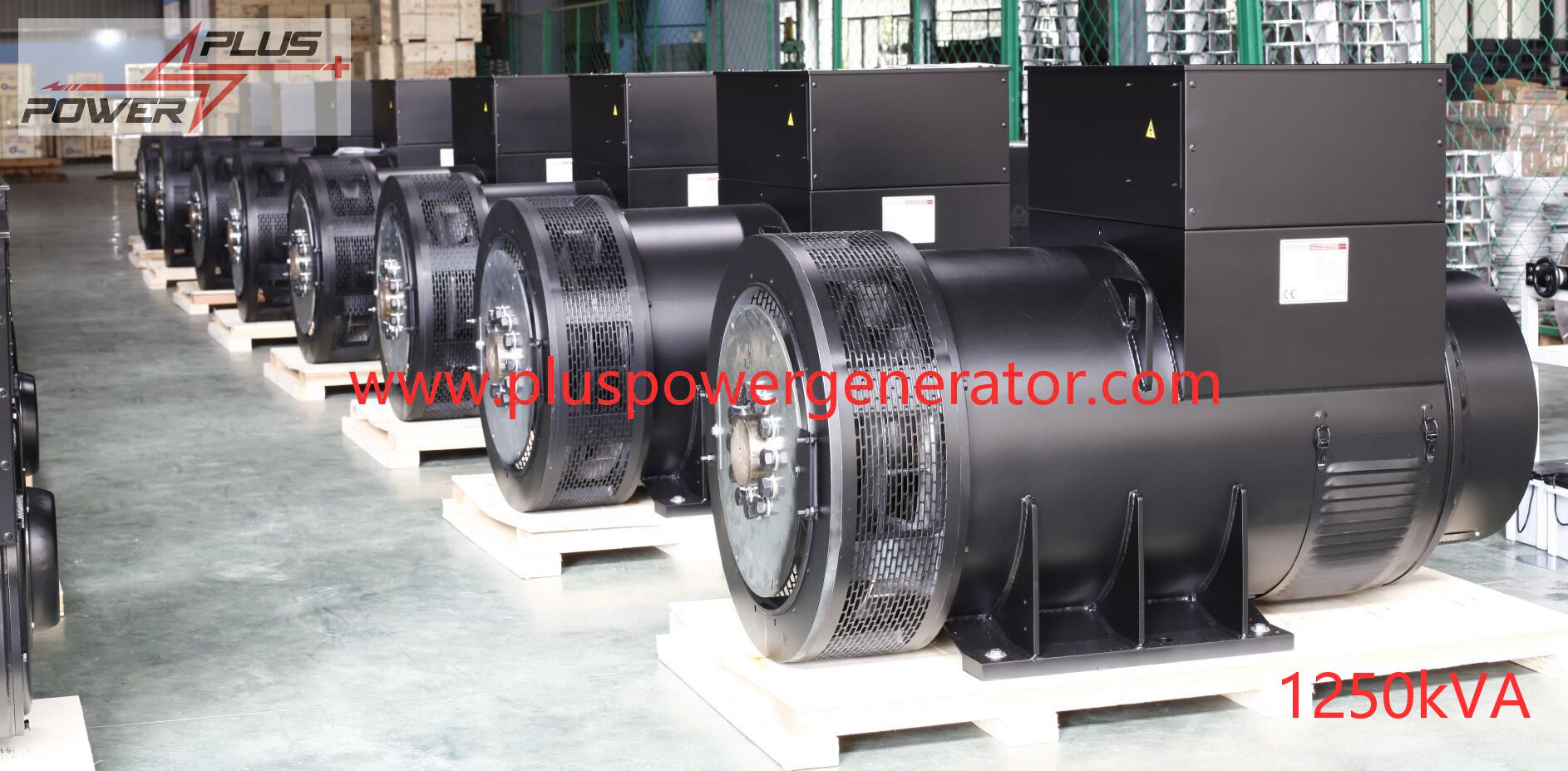

710kVA to 1250kVA 404 Series Generator Alternator catalog

710-1250kVA@50Hz 220-440V 810-1400kVA@60Hz 110-480V

• 1:

  CE Certificate

• 2:

  Insulation calss H. Enclosure protection class IP22

• 3:

  Single /Double bearing are optional

• 4:

  Stator leads can be rewired to meet different voltage

• 5:

  Fully enclosed maintenance-free bearing

• 6:

  Stable voltage regulation rate:≤1%

• 7:

  Transient voltage regulation:≤ -18% - +20%

• 8:

  Voltage sinusoidal waveform distortion rate:≤3%

• 9:

  Telephone harmonic factor (THF):≤2%

• 10:

  Telephone interference factor (TIF): ≤50
