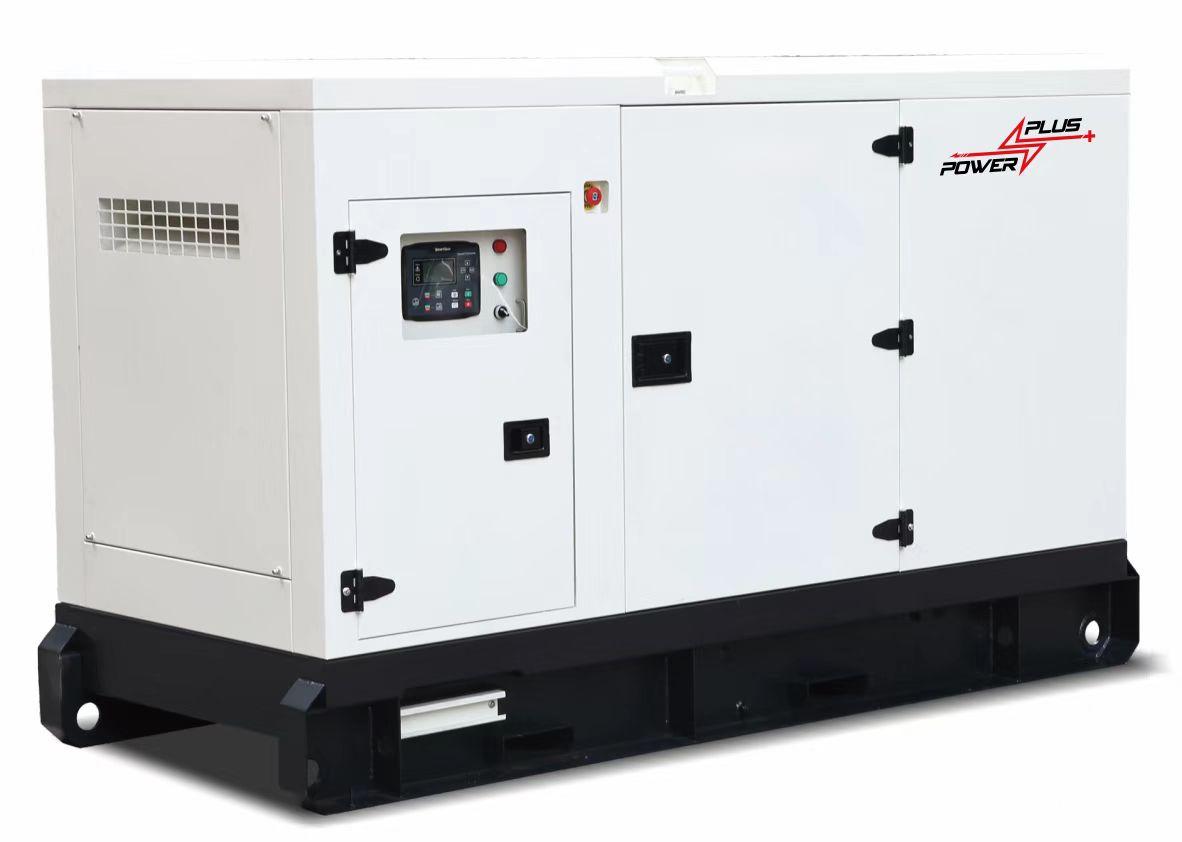

Cummins 6BTAA5.9-G2 50/60Hz 135kVA/150kVA Diesel set fuel consumption

108/116kW 135/145kVA@50Hz, 116/125kW 145/156kVA@60Hz

• Genset Model:

  PC145/PC156

• Prime/Standby Power@50Hz:

  108/116kW 135/145kVA

• Prime/Standby Power@60Hz:

  116/125kW 145/156kVA

• Cylinder *Bore*Stroke/Displacement:

  6×102×120mm/5.9L

• Alternator Style/Model:

  Stamford/SURIRELLA 274E

• Controller Brand/Model:

  DEEPSEA/PLUS POWER 6120

• Fuel Consumption(50/60Hz):

  29.4/32.9L/h @ 100% load

• Coolant/Lubrication/Fuel tank Capacity:

  22.4/16.4/300L

• Open type size/Weight:

  2350*900*1400mm/1270KGS

• Sound proof size/Weight:

  3000*1100*1500mm/1760KGS
