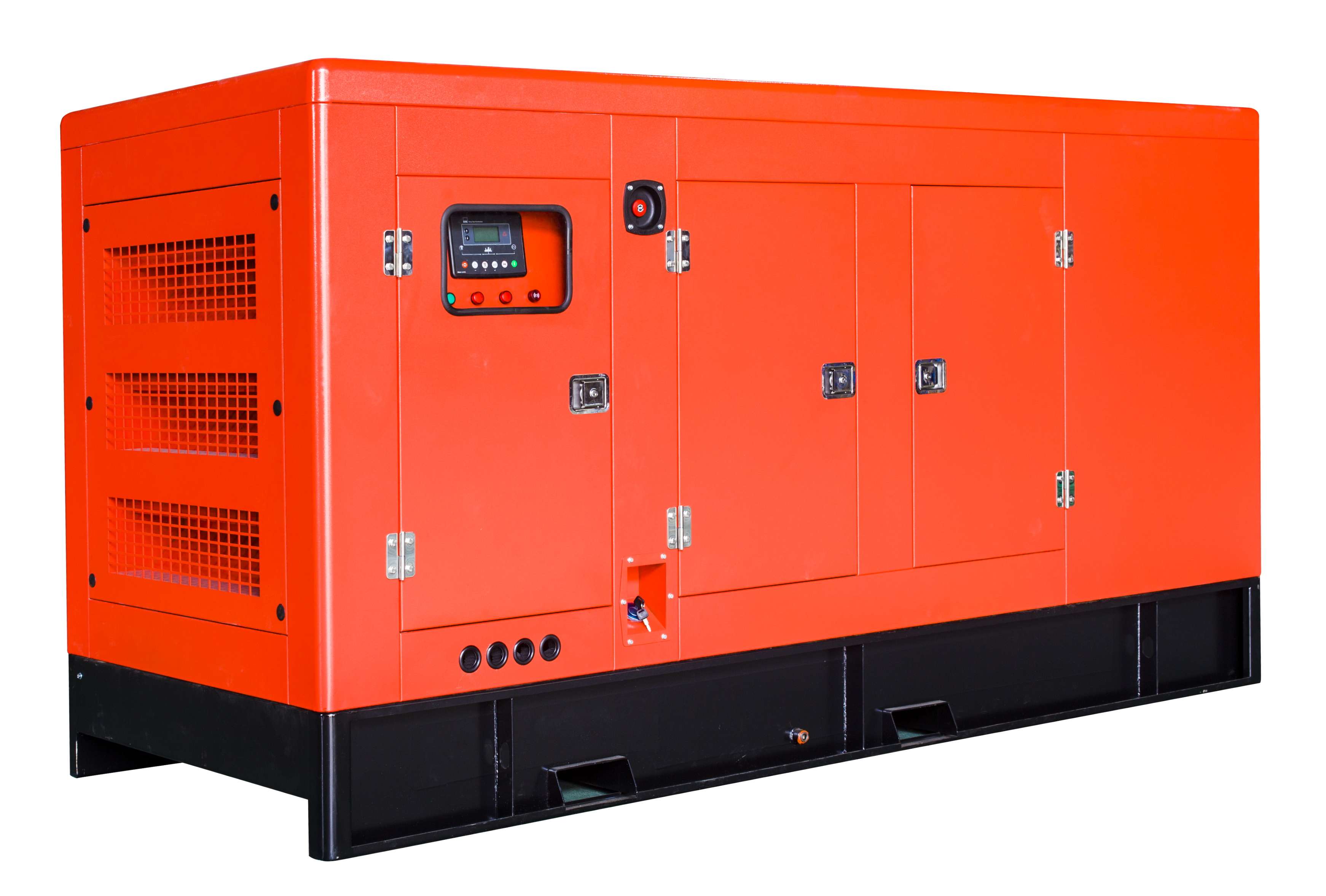

NTAA855-G7A/50Hz NTA855-G3/60Hz 400kVA Cummins Generator enclosure specification

320/352kW 400kVA/440kVA@50Hz, 320/352kW 400kVA/440kVA@60Hz,

• Genset Model:

  PC440

• Prime/Standby Power@50Hz:

  320/352kW 400kVA/440kVA

• Prime/Standby Power@60Hz:

  320/352kW 400kVA/440kVA

• Cylinder *Bore*Stroke/Displacement:

  6×140×152mm/14L

• Alternator Style/Model:

  Stamford/SURIRELLA 314F

• Controller Brand/Model:

  DEEPSEA/PLUS POWER 6120

• Fuel Consumption(50/60Hz):

  88L/h @ 100% load

• Coolant/Lubrication/Fuel tank Capacity:

  20.8/38.6/700L

• Open type size/Weight:

  3250*1100*1900mm/3100KGS

• Sound proof size/Weight:

  4100*1500*2250mm/4070KGS
